Description

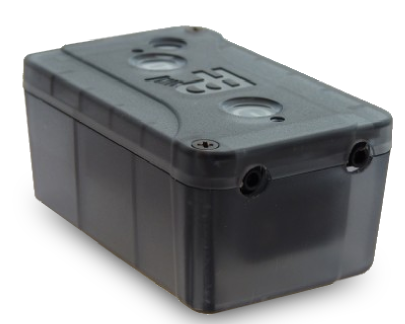

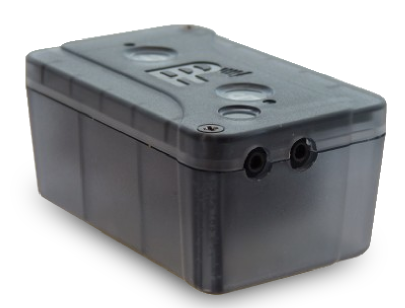

The SC8 External Jack Sensor is our base level external sensor device. It includes the same functionality of the SC18 except with a reduced wireless range and non-upgradeable firmware. It accepts up to 4 individual external sensors at one time. We offer a selection of AC Current (CT) sensors ranging up to 200A and compatibility with 3rd party plug type sensor providers. Our DataRecorder and configuration utility software can be programmed to display the proper measurement units for the individual sensor inputs.
Schneider Electric, Veris Industries, Onset, and other manufacturers also offer a range of compatible sensors including air pressure, CO2, 4-20mA, 0-10V, and more. Remote email or text (SMS) alarms can also be enabled with our HaloCloud service.
User manual
What's included
- SC8 External Jack Sensor
- 2 AAA batteries (installed)
Features
- Secure reliable wireless transmission of external jack type sensor inputs
- Accepts Paragon AC Current (CT) external sensors
- Compatibility with 3rd party external sensor providers - Schneider Electric, Onset, and others.
- External sensors available for AC Current, air pressure and velocity, CO2, water levels and temperature, Conductivity/Salinity, Dissolved Oxygen, 4-20mA, 0-10V, and more
- Low power design - Battery powered sensor provides installation location flexibility
- Unmatched battery life expectancy – 7-10 years
- Compact size convenient for easy installation
- Industry leading data storage – up to 120 Billion points
- Powerful DataRecorder software included to chart, log, monitor all individual sensors
- HaloCloud service for access to remote sensor data and configuration from anywhere including from Tablets, Smart Phones, Remote PCs
- Programmable individual sensor alarm set points and alarm notification via email or Text message with HaloCloud service
- Complete setup requires one System Gateway (GWx series). Add sensors as needed with scalable system and gateways capable of handling hundreds of sensors at a single location
- Compliant to RoHS Directive 2002/95/EC
Common Markets
Compatable external sensors
| Measurement | Range | External sensor |
| AC current | 0-10A, 0-20A, 0-40A (switchable) | CT40 |
| AC current: 0-30A, 0-60A, 0-120A (switchable) | CT120 | |
| AC current: 0-200A | CT200 | |
| Pressure | 0-200psi | PRS300B |
| Analog input | 0-2.5V | CST25 |
| 0-5V | CST5 | |
| 0-10V | CST10 | |
| 4-20mA | CST420 |
Application Examples
- Energy Management, Auditing, Monitoring, Analytics
- HVAC Systems
- Industrial Process Monitoring
- Water/Wastewater process monitoring
- Environmental Data Acquisition and Studies
- Medical /Pharmaceutical
- Petrochemical
- Agriculture
- R&D
Specifications
| Model Number | SC8 |
| Measurement Channels | 4 channels |
| Sensor | External plug/jack |
| Measurement Range | External sensor range |
| Units | Programmable for external sensor units |
| External Sensor Options | AC Current, Air pressure and velocity, CO2, Water levels and temperature, Conductivity/Salinity, Dissolved Oxygen, 4-20mA, 0-10V and more |
| Sample Rate | 10 Hz to 32 Hrs |
| Sensor Response Time (90%) | External sensor dependent |
| Resolution | 0.8mV |
| Calibrated Accuracy | ±2mV |
| Digital I/O Channels | N/A |
| Temporary Sensor Memory | 1000 data points |
| Long -term Memory (using Gateway): | Up to 120 billion data points |
| LED Indicator | Green, power and programming indicator |
| Required Interface Package | Gateway (GWx series) |
| Wireless Data Security | AES-256 Encryption |
| Radio Power | 125mW |
| RF Carrier Frequency | 902-928 MHz |
| RF Transmit Data Rate | Auto-adjusting 32-196kbps |
| Hopping Channels | 25 |
| Modulation | GFSK |
| Transmit Power | +13dBm |
| Receiver Sensitivity | -110dBm typical |
| Range (Line of sight) | Up to 1200' (0.25 mi) |
| Range (Typical indoors) | Up to 100' |
| Power Requirements | Battery operated - Std 2 AAA |
| Typical Battery Life | 7-10 years |
| Enclosure Material | Ruggedized polycarbonate plastic |
| Upgradable Firmware | No |
| Indoor/Outdoor | Indoor |
| Operating Environment | -40~+85°C (-40~+185°F); 0~95%RH non-condensing using optional lithium batteries (supplied alkaline batteries -15~+55°C) |
| Dimensions | 70x45x22 (mm) (2.76" x 1.77" x 1.73") |
| Weight | 5oz. with batteries |
| Approvals | US(FCC), CA(IC) |
| Warranty | One (1) year parts and service |
