Description

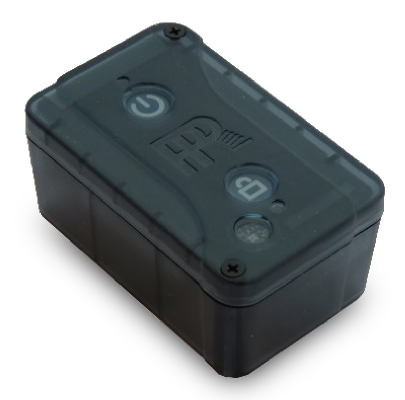

The SC72 Magnemometer Sensor measures magnetic field strength, and can be used to track runtime of motors, log compass orientation, or used in combination with a magnet to monitor door positions.
User manual
What's included
- SC72 Wireless Magnemometer Sensor
- 2 AAA batteries (installed)
Features
- Low power design - Battery powered sensor provides installation location flexibility
- Unmatched battery life expectancy for motion detection – 1-2 years
- Compact size convenient for easy installation
- Industry leading data storage – up to 120 Billion points
- Powerful DataRecorder software included to chart, log, monitor all individual sensors
- HaloCloud service for access to remote sensor data and configuration from anywhere including from Tablets, Smart Phones, Remote PCs
- Programmable individual sensor alarm set points and alarm notification via email or Text message with HaloCloud service
- Complete setup requires one System Gateway (GWx series). Add sensors as needed with scalable system and gateways capable of handling hundreds of sensors at a single location
- Compliant to RoHS Directive 2002/95/EC
Application Examples
- Energy Management, Auditing, Monitoring, Analytics
- HVAC Systems
- Energy Savings Systems
- Public facilities monitoring
- Buildings and Facilities
- Storage and Warehouse
- Museums
- Greenhouses
- Server Facilities
Specifications
| Model Number | SC72 |
| Measurement Channels | Magnemometer, Single channel |
| Sensor | 3-axis linear magnetometer |
| Measurement Range | 1000uT (microTesla) |
| Units | microTesla |
| Sample Rate | 10 Hz to 32 Hrs |
| Sensor Response Time (90%) | Approx. 1s |
| Resolution | 0.10uT |
| Calibrated Accuracy | 1uT |
| Digital I/O Channels | N/A |
| Temporary Sensor Memory | 1000 data points |
| Long -term Memory (using Gateway): | Up to 120 billion data points |
| LED Indicator | Green, power and programming indicator |
| Required Interface Package | Gateway (GWx series) |
| Wireless Data Security | AES-256 Encryption |
| Radio Power | 250mW |
| RF Carrier Frequency | 902-928 MHz |
| RF Transmit Data Rate | Auto-adjusting 32-196kbps |
| Hopping Channels | 25 |
| Modulation | GFSK |
| Transmit Power | +20dBm |
| Receiver Sensitivity | -110dBm typical |
| Range (Line of sight) | Up to 1700’ (0.3 Miles) |
| Range (Typical indoors) | Up to 150' |
| Power Requirements | Battery operated - Std 2 AAA |
| Typical Battery Life | 7-10 years |
| Enclosure Material | Ruggedized polycarbonate plastic |
| Upgradable Firmware | Yes |
| Indoor/Outdoor | Outdoor |
| Operating Environment | -40~+85°C (-40~+185°F); 0~95%RH non-condensing using optional lithium batteries (supplied alkaline batteries -15~+55°C) |
| Dimensions | 70x45x22 (mm) (2.76" x 1.77" x 1.73") |
| Weight | 5oz. with batteries |
| Approvals | US(FCC), CA(IC) |
| Warranty | One (1) year parts and service |
