Description
The GW10 Wireless Gateway is our lowest cost Super-Gateway with a full ARM-based Linux platform for powerful scripting capabilities. The GW10 is popular with system integrators and analytics companies to communicate with BACnet, Modbus, or any other custom network-based protocols. It features 3GB of on-board memory for data storage and it provides interconnectivity for an unlimited number of Halo/S™ devices at once. While the GW10 is connected via Ethernet to your local network router, PC or server, our Super-Gateway product line provides connectivity options for a best fit into your Data Logger application. The Model GW11 Super-Gateway adds WIFI 802.11 b/g/n capability and Model GW12 adds a built-in 3G/4G modem for cellular connections.
One gateway is required for each site, and oversees each wireless network. It also relays communications between all wireless sensors and a connected PC or local network. On-board storage is used to store decades of logged data from the connected sensors in its wireless network. The gateway can be optionally configured to work with our HaloCloud service, allowing remote monitoring, control, and alarms for the entire system.

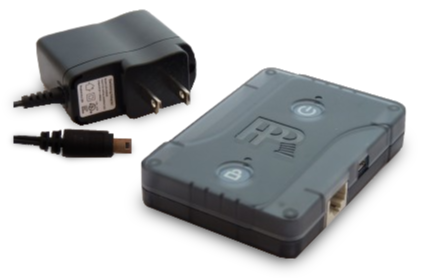

What's included
- GW10 Wireless Gateway
- AC wall adapter
Features
- ARM-Based Linux platform for powerful scripting capabilities
- Communicate with BACnet, Modbus or any other custom network based protocols
- Software programming toolkits
- Fast 100Mbps Ethernet port for connection to local network router, PC or server
- Single Super-Gateway covers 30,000 sqft
- Hundreds of sensors per single Super-Gateway
- Storage Capability- Up to 12 Billion data points with 3GB of onboard storage
- Advanced wireless and data security with frequency hopping and AES -256 encryption
- High performance and extended range RF transceiver – 0.3 Mile line of sight capability
- HTTP/DNS/DHCP server and client stack for integration into 3rd party software and dashboards
- Ruggedized polycarbonate plastic enclosure with wall mounting hardware
- Compliant to RoHS Directive 2002/95/EC
Application Examples
- Energy Management, Auditing, Monitoring, Analytics
- HVAC Systems
- Energy Savings Systems
- Buildings and Facilities Management
- Environmental Research Data Acquisition and Studies
- Storage and Warehouse
- Museums
- Cold Chain and Food Storage
- Medical /Pharmaceutical
- Industrial Process Monitoring
- Universities, Campuses and Schools
Specifications
| Model Number | GW10 |
| Number of devices | Unlimited |
| Ethernet port | 100Mbps, Connection to local network router, PC or server |
| Processor | ARM-based Linux platform |
| Protocol support | BACnet, Modbus, Custom capability for other capabilities |
| Programming | On board scripting capabilities for customization |
| Flash memory | 3GB via onboard flash |
| Data Storage capability | Up to 12 Billion data points |
| Sample Rate | 10 Hz to 32 Hrs |
| LED Indicator | Green, Power and Programming indicator |
| Wireless Data Security | AES-256 Encryption |
| Radio Power | 250mW |
| RF Carrier Frequency | 902-928 MHz |
| RF Transmit Data Rate | Auto-adjusting 32-196kbps |
| Hopping Channels | 25 |
| Modulation | GFSK |
| Transmit Power | +20dBm |
| Receiver Sensitivity | -110dBm typical |
| Range (Line of sight) | Up to 1600' (0.3 mi) |
| Range (Typical indoors) | Up to 150' |
| Power Requirements | AC/DC power adapter with mini USB adapter, 5VDC, 100mA |
| Power Options | USB Battery pack with mini USB adapter, Direct USB Power |
| Enclosure Material | Ruggedized polycarbonate plastic |
| Upgradable Firmware | Yes |
| Indoor/Outdoor | Indoor |
| Operating Environment | -40~+85°C (-40~+185°F); 0~95%RH non-condensing |
| Dimensions | 90x65x18 (mm) (3.54" x 2.56" x 0.71") |
| Weight | 3oz |
| Approvals | US(FCC), CA(IC) |
| Warranty | One (1) year parts and service |
