RP2 Wireless Controller

Controllers

Home > Products > Controls > RP2 Controller

Price: $
+
Add to Cart

Estimated ship date: Please contact us

Price: $699.00
Visit webstore
Description
Specifications

Description

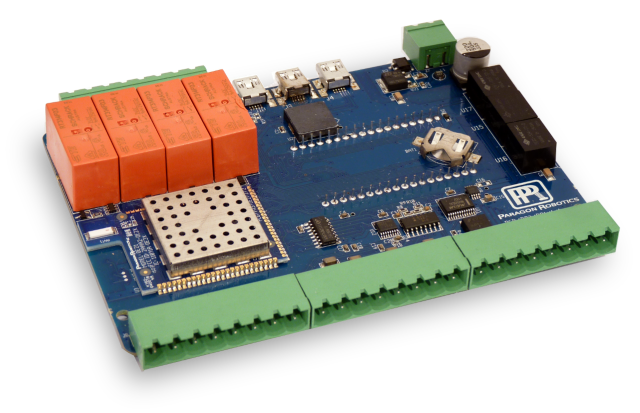

The RP2 wireless controller provides 4x 240V/10A relay outputs, 5 universal outputs (0-10V), and one 4-20mA output. For inputs, is accepts 3 universal inputs, 4 AC voltage detectors, and one 4-20mA input to provide a single controller device capable of controlling simple machines or systems. The RP2 can seamlessly communicate with any of our other wireless products to provide remote reading or control capability, as well as allowing system integrators to integrate a wide variety of sensor or control types.

Control program templates can be developed using a Javascript-style language API. Program templates can then be utilized by any user for installation in any system. We also provide programming services for our customers, and can quickly provide customized programming for any application.

What's included

  • RP2 Wireless Controller

Features

  • 4x 240V/10A relay outputs
  • 5x universal outputs (0-10V)
  • 1x 4-20mA output
  • 3x universal inputs (0-10V)
  • 1x 4-20mA input
  • 4x AC voltage detector inputs (RP2 only)
  • Infinite expandability with our entire wireless product line
  • Compact size convenient for easy installation
  • HaloCloud service for complete remote access and configuration from anywhere including from Tablets, Smart Phones, Remote PCs

Application Examples

  • HVAC equipment control
  • Machinery control
  • PLC replacement
  • Advanced alarming
  • Automation integration
  • Simple HMIs for systems

Specifications

Model NumberRP2
Measurement ChannelsVoltage, current
Sensors3x universal inputs (<= 10V), 1x 4-20mA input, 4x AC detectors (24V-240V)
Controls4x 240V/10A relays, 5x universal outputs (0-10V), 1x 4-20mA output
Sample Rate10 Hz to 32 Hrs
Resolution0.01V, 0.02mA
Calibrated Accuracy±0.02V, ±0.04mA
Digital I/O ChannelsN/A
Temporary Sensor Memory1000 data points
Long-term Memory (using Gateway):Up to 120 billion data points

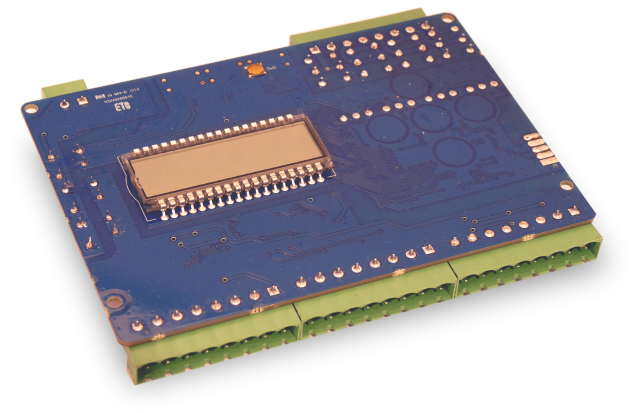

Display8 position LCD
Interface5 button keypad
Required Interface PackageGateway (GWx series)
Wireless Data SecurityAES-256 Encryption
Radio Power250mW
RF Carrier Frequency902-928 MHz
RF Transmit Data RateAuto-adjusting 32-196kbps
Hopping Channels25
ModulationGFSK
Transmit Power+20dBm
Receiver Sensitivity-110dBm typical
Range (Line of sight)Up to 1700’ (0.3 Miles)
Range (Typical indoors)Up to 150'
Power Requirements24V AC or 24V DC
Enclosure MaterialABS (black), Kydex (black)
Upgradable FirmwareYes
Indoor/OutdoorIndoor
Operating Environment-40~+85°C (-40~+185°F); 0~95%RH non-condensing using optional lithium batteries (supplied alkaline batteries -15~+55°C)
Dimensions70x45x22 (mm) (2.76" x 1.77" x 1.73")
Weight5oz. with batteries
ApprovalsUS(FCC), CA(IC)
WarrantyOne (1) year parts and service
